Parts of the analytical system EA 202 M
( IM = Instruction manual pre EA 202M )

EA 101 001 Preseparation column PC CD 90
EA 101 002 Preseparation column PC CD 160
EA 101 003 Analytical column AC CD UVD 90
EA 101 004 Analytical column AC CD UVD 160

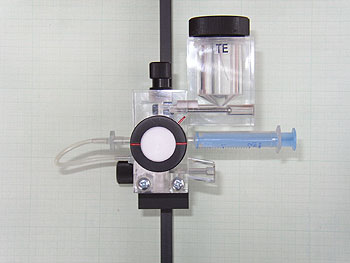

EA 202M 005 ITP injection valve ( 30 ul, Fig..3 – IM)
EA 202M 006 Changing plunger of valve

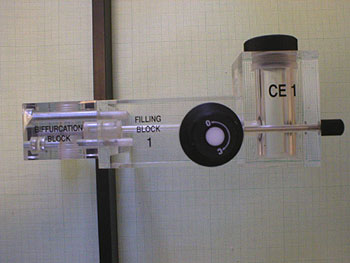

EA 202M 007 Bifurcation block right (Fig. 6-3-4 - IM)
EA 202M 008 LE reservoir ( Fig. 6-3-1 – IM)
EA 202M 009 Filling tube with screws (Fig.6-3-28 and 9-5-28– IM)
EA 202M 010 ITP injection valve ( 200 ul)
EA 101 011 CZE injection valve 200 nl
EA 202M 012 Micropreparative valve ( 5ul) with holder
EA 202M 013 Front door
EA 202M 014 Filling block holder (Fig.9 – IM)
EA 202M 015 Preseparation column PC CLD (contactless detector) 85
EA 202M 016 Preseparation column PC CLD (contactless detector) 160
EA 202M 017 Analytical column AC CD 90 JM
EA 202M 018 Analytical column AC CD 160 JM
EA 202M 019 Analytical column AC CD 90 SMA
EA 202M 020 Analytical column AC CD 160 SMA
EA 202M 021 Analytical column AC quartz 160 JM
EA 202M 022 Analytical column AC quartz 160 SMA
EA 202M 023 Analytical column AC CLD (contactless detector) 140 JM
EA 202M 024 Analytical column AC CLD (contactless detector) 140 SMA
EA 202M 025 Changing detector of contactless detector preseparation column PC
EA 202M 026 Changing detector of contactless detector analytical column AC
EA 202M 027 Analytical column AC CD 90 ( without UV adapter)
EA 202M 028 Analytical column AC CD 160 ( without UV adapter)
EA 101 015 Analytical column AC CD SMA educ

Small parts EA 202

EA 101 101 Nut M3 ( Fig.6, 9 – IM)
EA 101 102 Cellophane membrane ( 50 pcs, Fig.6,9– IM)
EA 101 103 Fixing ring ( 10 pcs, Fig.5,8 – IM )
EA 202M 104 Fixing screw of optical fibre (Fig.9-4-22 – IM)
EA 101 106 Needle valve (Fig.46-3-25 – IM)
EA 101 107 Valve flange ( Fig.6-3-25 – IM)
EA 101 108 Support dise (Fig.6,9 – IM)
EA 202M109 Vaste collector (Fig.3-1 – IM)
EA 202M 110 Valve holder (Fig.3-2-1-22 – IM)
EA 202M 111 Body of the valve (Fig.3-1-1-1 – IM)
EA 202M 112 TE reservoir (Fig.3-1-1-15 – IM)

Electronical parts EA 202M

EA 101 201 HV power source
EA 202M 202 HV relay
EA 101 203 HV ralay board
EA 202M 205 Controller
EA 202M 206 Detectors board
EA 202M 207 LV power source
EA 101 208 Káblik pre vod. detektor
EA 101 209 HV relay cabel
EA 101 210 Detach transformator
EA 202M 211 Display

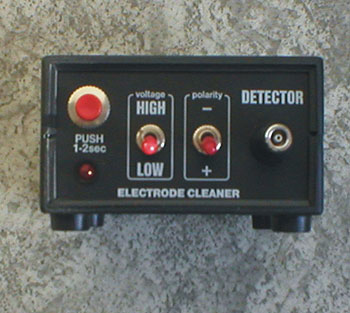

EA 202M 212 Detector cleaner with adapter
